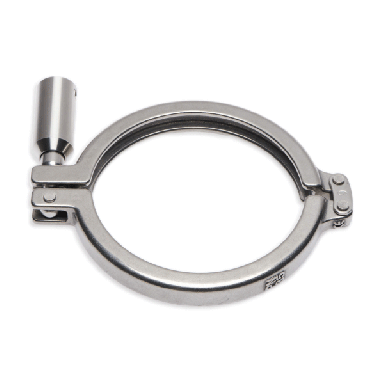

SH Safety Clamp 316 Shrouded

Description

SH safety clamp 316 shrouded, SAFS type, for safety critical applications where removal is limited to a socket tool. Corrosion resistant, high quality surface finish (for cleanability). Sizes ½" to 12 5/8".

Specifications

Material: 316 / 1.4401
BPE / 3A sanitary unions

Dimensional Image

Features

Application: Pharmaceutical
Hinge Layout: Safety Gate, Eye Bolt & Nut
Supplied Assembled
Design optimised for one-handed assembly.

NAME

PART#

Flange (A) mm

Length (C) mm

MAWP Bar kg

Nominal Size (ISO)

Nominal Size (Imperial)

Nominal Size (Metric)

Radius (B) mm

Weight kg

Width (W) mm

LIST PRICE

SH Safety Clamp 316 Shrouded 25.4mm Flange

SHSS0002506

25.40

75.00

DN8-10

0.5"

DN 6-8

63.00

.15

Price On Request

SH Safety Clamp 316 Shrouded 34mm Flange

SHSS0003406

DIN10

DN 10-20

0.18

Price On Request

SH Safety Clamp 316 Shrouded 50.5mm Flange

SHSS0005006

50.5

102

DN15-25

1½”

DN 25-40

0.25

Price On Request

SH Safety Clamp 316 Shrouded 64mm Flange

SHSS0006406

123

DN32-40

DN 50

0.33

Price On Request

SH Safety Clamp 316 Shrouded 77.5mm Flange

SHSS0007706

77.5

140

DN50

2½”

100

0.38

Price On Request

SH Safety Clamp 316 Shrouded 91mm Flange

SHSS0009106

150

DN65

3”

DN 65

105

0.44

Price On Request

SH Safety Clamp 316 Shrouded 106mm Flange

SHSS0010606

106

165

DN80

3½”

DN 80

110

0.44

Price On Request

SH Safety Clamp 316 Shrouded 119mm Flange

SHSS0011906

119

185

4”

DN 100

119

0.57

Price On Request

SH Safety Clamp 316 Shrouded 130mm Flange

SHSS0013006

130

191

DN100

4½”

119

0.6

Price On Request

SH Safety Clamp 316 Shrouded 144mm Flange

SHSS0014406

144

215

5”

131

0.75

Price On Request

Please Login To Order
